JIS Standard Hydraulic tie-rod type Cylinder
Specification
| Standard Type | Switch Type | |
| Series name | T | TR |
| Nominal Pressure | 21MPa | |
| Test Proof Pressure | 31.5MPa | |
| Bore | Φ40・Φ50・Φ63・Φ 80・Φ100・Φ125・ Φ140・Φ160・Φ 180・Φ200・Φ224・Φ 250 | Φ40・Φ50・Φ63・Φ80 |
| Operating Speed | 8 ~ 400mm/sec for Ø40 ~ Ø63 | |
| 8 ~ 300mm/sec for Ø80 ~ Ø125 | ||
| 8 ~ 200mm/sec for Ø140 ~ Ø250 | ||
| Operating Temperature | (Standard) -10℃ ~ +80℃ | (Standard) -10℃ ~ +60℃ |
| (High Temperature Specification) -10℃ ~ +120℃ | (High Temperature Specification) -10℃ ~ +100℃ | |

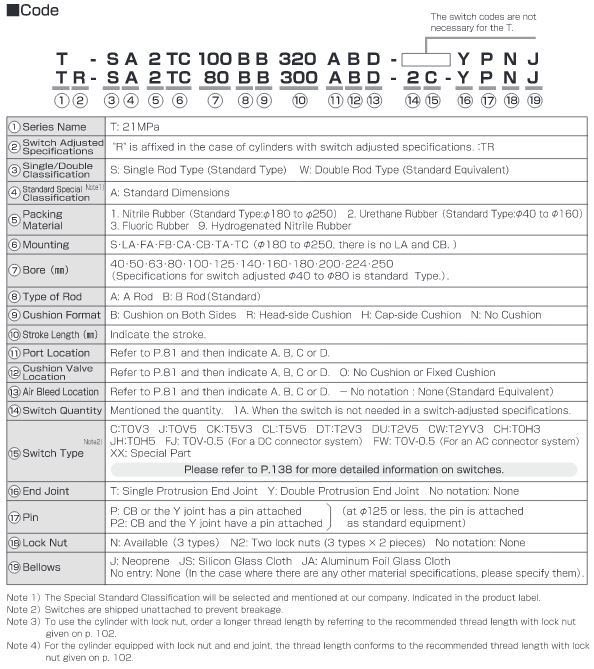

Ordering Code
Used with Hydraulic Oil
| Seal Symbol | 1 | 2 | 3 | 9 |
| Material | Nitrile Rubber | Urethane Rubber | Fluoric Rubber | High Temperature Nitrile Rubber |
| General-Purpose Mineral Hydraulic Oil | O | O | O | O |
| Water + Glycol-type Operating Oil | O | X | X | O |
| Phosphate Ester Fluid | X | X | O | X |
| Fatty Acid Ester Fluid | X | X | O | O |
