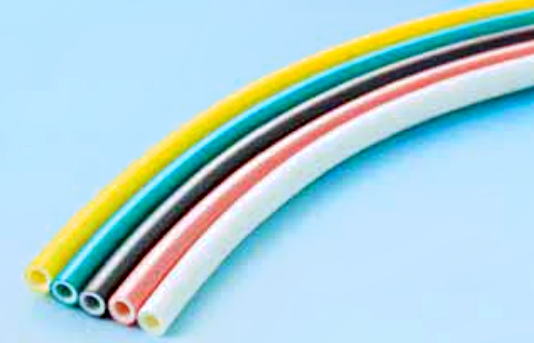

Flame-Retardant Tubes

Flame-Retardant Tubes (PES3)

  • Outer layer elastomer of flame and heat-resistant reduces resolution when spatter attached to it
  • Approved material by UL94V-0. Registration No. E83247
  • The tube with stain finished surface processed (frosting) by special manufacturing, it reduces the abrasion for the tube surface.
  • And that enables the tube to move smoothly for the moving part.
  • The inside tube being smooth, there is no pressure loss for fluid.
  • Inner tube being made of flexible heat-resistant elastomer, which is superior flexibility and resistance to fatigue from flexing.
  • It is suitable for the moving part.
  • Not plasticizer being included, it can prevent the tube from thinning or hardening.
  • No need to peel off outer layer by single-core of two layers when installed into the fitting.
1

Material &  Working Temperature Range

  • Material: High heat-resistant incombustible elastomer
  • Working temperature range: Air/Oil: – 40 °C ~ + 120  °C, Water: 0 °C ~ + 60  °C (Not to be frozen)

*Please inquire of us about use of liquid (Oil, Solvents)

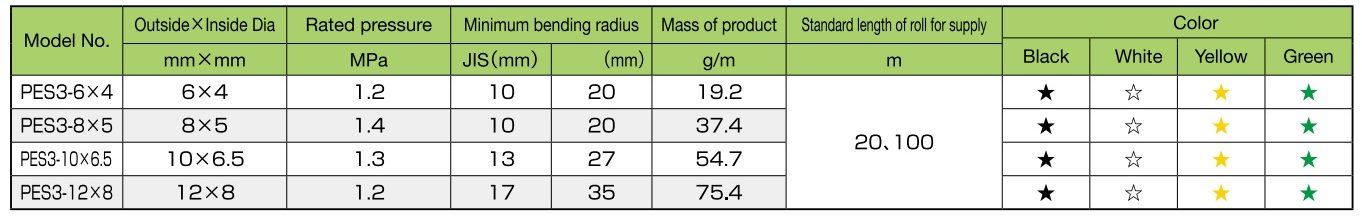

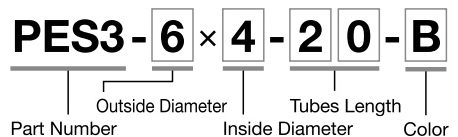

Designation and Performance Table
