SUS316 Type, Instant Fitting

SUS316 Type, Instant Fitting (US Series)

  • Instant fitting eliminates need for tools
  • Easy connection by only inserting the tube lightly
  • Can be disconnected easily by pulling out the tube while pushing the releasing sleeve with another hand
  • Great reduction of plumbing space
  • Tool working space for putting on or taking off the tube is unnecessary
  • Structure to be able to turn the screw of main body makes it possible to change a plumbing direction freely
  • Hence the plumbing work at small place is easy

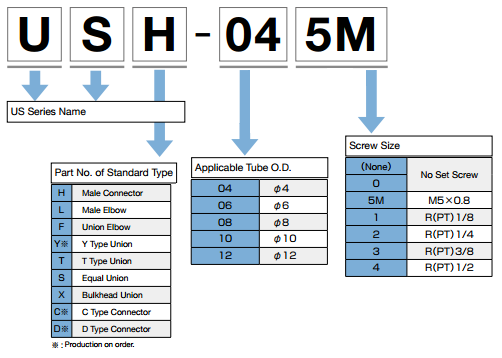

us2 us1

Specifications

  • Fluid used: Air, Water
  • Working pressure: 0~1MPa (10kgf/cm2 )
  • Negative pressure: 10Torr (−100kPa)
  • Working temperature: −15~120℃ (Not to be freezed. May very depending on the tube materials and sizes. The content of the specification may vary depending on working condition or the type of tube to be used.)

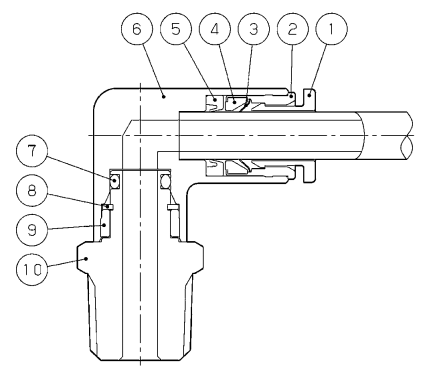

us3 us4

Types

Male Connector

USH

us

Male Elbow

USL

us5

Union Elbow

USF

us6

Y Type Union

USY

us7

T type Union

UST

us8

Equal Union

USS

us9

Bulkhead Union

USX

us10
