SUS304 Type, Instant Fitting

SUS304 Type, Instant Fitting (ZA Series)

  • Instant fitting eliminates need for tools
    • Easy connection by only inserting the tube lightly. Can be disconnected easily by pulling out the tube while pushing the releasing sleeve with another hand.
  • Great reduction of plumbing space
    • Tool working space for putting on or taking off the tube is unnecessary. Structure to be able to turn the screw of main body makes it possible to change a plumbing direction freely. Hence the plumbing work at small place is easy.
  • Utilizing the flame-retardant resin
    • The resin part is made of flame-retardant material. (equivalent to UL94 V0 standard)
  • Fluoric resin-coated screw
    • No need to use the seal tapes or the seal materials. It makes the working hour and the work man-hour greatly shortened. Also there is no worry of leakage caused by scroll irregularity. Excellent in water and oil resistance performance.

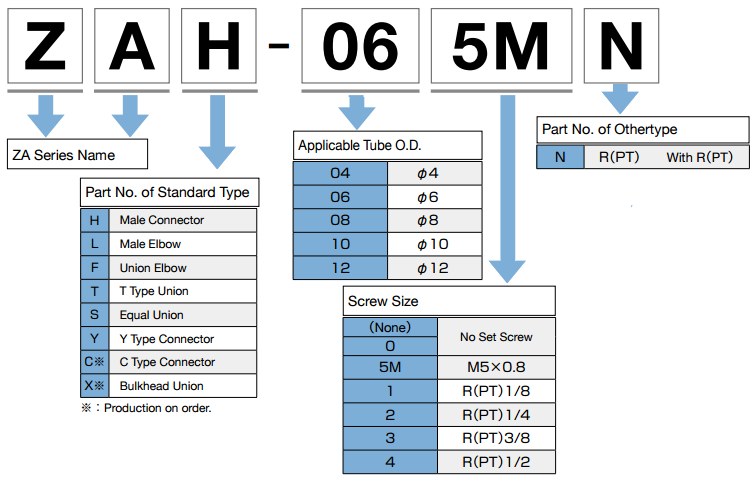

za1 za2

Specifications

  • Fluid used: Air, Water. (Please Consult us about the condition to use)
  • Working pressure: 0~1MPa (10kgf/cm2 )
  • Negative pressure: 10Torr (−100kPa)
  • Working temperature: −1~60℃ (Not to be freezed)
  • Applicable Tube: Nylon Tubes (AX-1200, F-1500), Polyurethane Tubes (U-9200, U-9500, ARU), eco-flex tubes (ecos, ecoh, ecoh (wr), Fluorine Resin Tubes (FE)

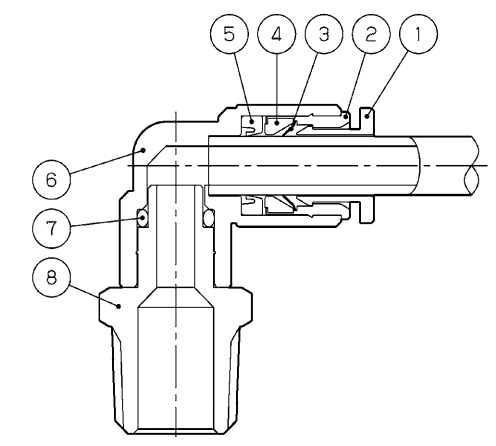

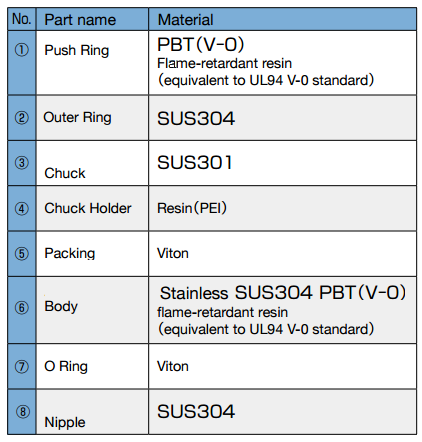

za3 za4

Types

Male Connector

ZAH

za5

Male Elbow

ZAL

za6

Union Elbow

ZAF

za7

T Type Union

ZAT

za8

Equal Union

ZAS

za9

Bulkhead Union

ZAX

za12

C Type Union

ZAC

za11

Y Type

Connector with R(PT)

ZAY-N

za10
