Resin Sleeve, General Application

Resin Sleeve (R Series)

• The stable air tightness can be given to the liquid.
• Low tightening torque because of the resin sleeve.
• The fastening fitting-with the reliable seal characteristics, excellent resistance to pressure and vibration.
• The fluorine resin coated screw.

Specifications

• Fluid used: Air,Water,Oil
• Max. Working pressure: Conforming to the maximum working pressure of the tube.
• Working temperature: -20°C～60°C for air, 0°C～60°C for water, -20°C～60°C for oil
• Negative pressure: -101.3kPa
• Applicable Tube: AMIDFLEX (AX-1200)

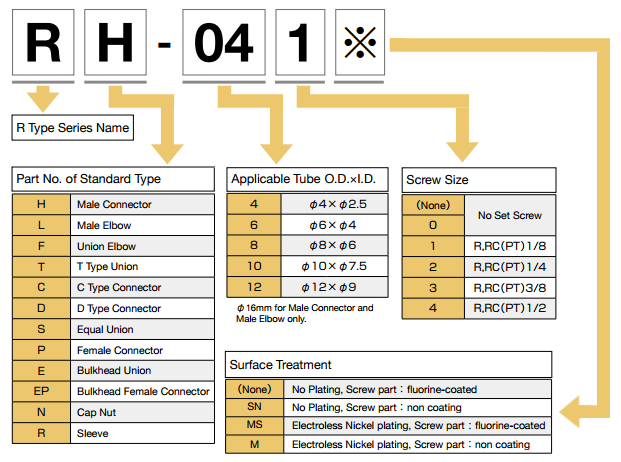

Types

Male Connector RH	Male Elbow RL	Union Elbow RF	T Type Union RT
C Type Connector RC	D Type Connector RD	Equal Union RS	Female Connector RP
Bulkhead Union RE	Bulkhead Female Connector REP	Cap Nut RN	Sleeve R
