Brass type, Miniature Instant Fitting
Brass type, Miniature Instant Fitting (C Series)
- Small size and Light weight
- Small one-touch operation joint allows short pitch and space-saving piping Resin part of incombustible material (UL94 V0)
- Incombustible resin does not keep burning even if attacked by weld spark (self-extinguishment)
- Brass part of electroless nickel plating appearance and corrosion resistance are improved.
 |  |
Recommended Tightening Torque
| Screw (JIS B0203) | Tightening torque (N.m) |
| M3 | 0.3～0.6 |
| M5 | 0.5～1.0 |
 |  |
| Male Connector CH

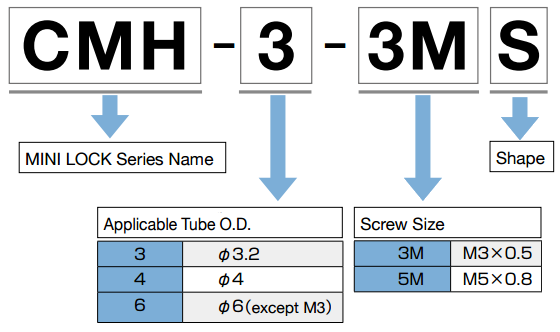

| Male Connector CMH-MS
| Male Elbow CL
| Long Male Elbow CL-L
|
| Union Elbow CF
| Y Type Union CY
| C Type Connector CC
| D Type Connector CD
|
| T Type Union CT
| Equal Union CS
| Reducing Union CS
| Bulkhead Union CX
|
| Female Connector CP
| Blank Plug CM
|
