Flame-retardant Protection 2 Layer Tubes Soft Nylon Series

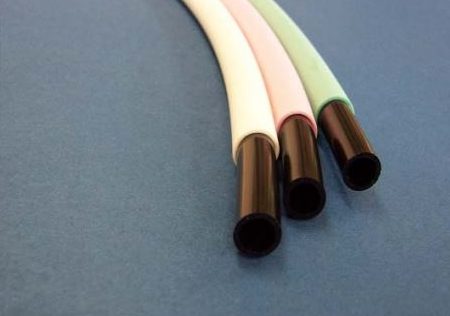

The Flame-retardant Protection 2 Layer Tubes Soft Nylon [NHPF] Series

  • Inner core of Soft Nylon Tube has preeminent flexibility and bearable flexural fatigue property.
  • Non-halogen, Non-phosphorus Flame-retardant Protective Sheathing is excellent in heat-resistance and flame-retardant performance
  • Non-halogen, Non-phosphorus Flame-retardant Protective Sheathing has the outstanding environmental characteristics, and does not contain environmental pollutants.
  • Inner core of soft nylon can be used for cooling-water piping or lubricant-air piping.
  • Biomass feedstock (plant-derived resin) is being utilized for inner core of soft nylon tube.
[NHPF Series] The Standard and Mechanical properties

  • Fluid used ：Oilless air, Lubricant-air, Water
  • Working temperature range：Air/Oil: – 40 °C ~ + 100  °C, Water: 0 °C ~ + 60  °C (Not to be frozen)

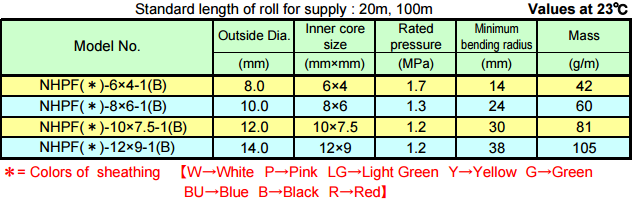

Designation and Performance Table
